ACI XCIX-0001
Member
You don t want to compare ShadowPlay with OBS but Apparently even if 2160p @ 60 FPS is a no good because HDR adds more load than SDR thing that I was aware of , BUT ShadowPlay can do this job whil OBS cannot for the time being.
OBS Induces Encoding Overload While no issue Nvidia ShadowPlay with the same settings in 4K HDR
- Thread starter ACI XCIX-0001
- Start date
ACI XCIX-0001
Member
No issues with ShadowPlay so it shouldn t be the issue with OBS too. And I have a 1 TB NVMe only....
ACI XCIX-0001
Member
OK trying with these settings and sending you the Log.
ACI XCIX-0001
Member
A lot less lags and gameplay slowering issues but infinite "Stopping Recording"....
Waiting it to stop the recording or Ending the process and sending you the Log ?
rockbottom
Active Member
Getting closer.
Some encoder overload, try Preset P4. Keep an eye on the GPU in Task Manager. I like to keep the encoder below 70% utilized so there's plenty of headroom.
Some encoder overload, try Preset P4. Keep an eye on the GPU in Task Manager. I like to keep the encoder below 70% utilized so there's plenty of headroom.
ACI XCIX-0001
Member
OK I ll try with P4.
After the infinite "Stopping Recording", Impossible to stop the Recording I ve Ended the process. Here the Log
rockbottom
Active Member
Yeah, process needs to be killed manually when the recording doesn't stop.
There are charts in this article that show quality/throughput for the new presets compared to the old. I also included a link to the Preset migration guide.
developer.nvidia.com
docs.nvidia.com
There are charts in this article that show quality/throughput for the new presets compared to the old. I also included a link to the Preset migration guide.
Introducing NVIDIA Video Codec SDK 10 Presets | NVIDIA Technical Blog
All NVIDIA GPUs starting with the Kepler generation support fully accelerated hardware video encoding, and all GPUs starting with the Fermi generation support fully accelerated hardware video decoding…
developer.nvidia.com
NVENC Preset Migration Guide
ACI XCIX-0001
Member
rockbottom
Active Member
I don't think you will need to go to P3 but if you're still getting some encoding lag after the P4 test, record to the NVMe.
Wrong view in Task Manger
Task Manger > Performance Tab > Change Graph To Multiple Engines
Wrong view in Task Manger
Task Manger > Performance Tab > Change Graph To Multiple Engines
ACI XCIX-0001
Member
OK for the preset but what these tables in the link are really showing ?
Here s the Ressources Tabs in the Task Manager. Still 25%.
Attachments
rockbottom
Active Member
From your last log, the CBR recording:
22:45:45.421: Output 'adv_file_output': Number of lagged frames due to rendering lag/stalls: 255 (1.1%)
22:45:45.422: ==== Recording Stop ================================================
22:45:45.422: Video stopped, number of skipped frames due to encoding lag: 1572/22654 (6.9%)
The CQP recording:
00:37:14.709: Output 'adv_file_output': Number of lagged frames due to rendering lag/stalls: 768 (0.8%)
00:37:14.709: [ffmpeg muxer: 'adv_file_output'] os_process_pipe_write for info structure failed
00:37:14.716: Video stopped, number of skipped frames due to encoding lag: 2112/54771 (3.9%)
Lagged frame percentage is going in the right direction. But, now it's right in the range where you could be getting lag from the rust drive not being able to write the data fast enough.
Correct view for Task Manger, what's up with your HD's are you using RAID?
22:45:45.421: Output 'adv_file_output': Number of lagged frames due to rendering lag/stalls: 255 (1.1%)
22:45:45.422: ==== Recording Stop ================================================
22:45:45.422: Video stopped, number of skipped frames due to encoding lag: 1572/22654 (6.9%)
The CQP recording:
00:37:14.709: Output 'adv_file_output': Number of lagged frames due to rendering lag/stalls: 768 (0.8%)
00:37:14.709: [ffmpeg muxer: 'adv_file_output'] os_process_pipe_write for info structure failed
00:37:14.716: Video stopped, number of skipped frames due to encoding lag: 2112/54771 (3.9%)
Lagged frame percentage is going in the right direction. But, now it's right in the range where you could be getting lag from the rust drive not being able to write the data fast enough.
Correct view for Task Manger, what's up with your HD's are you using RAID?
ACI XCIX-0001
Member
OK it s just the relative correllation and corresponding preset compared to the old encoding preset but do not give recommended preset according to specific GPU architectures (Turing, Pascal, Lovelace).Yeah, process needs to be killed manually when the recording doesn't stop.
There are charts in this article that show quality/throughput for the new presets compared to the old. I also included a link to the Preset migration guide.
Introducing NVIDIA Video Codec SDK 10 Presets | NVIDIA Technical Blog
All NVIDIA GPUs starting with the Kepler generation support fully accelerated hardware video encoding, and all GPUs starting with the Fermi generation support fully accelerated hardware video decoding…
NVENC Preset Migration Guide
rockbottom
Active Member
The migration guide does but you'll need to figure it out, I'm not explaining it.
ACI XCIX-0001
Member
OK don t want to be insistant but ShadowPlay can record no issue on the HDD 7200 RPM Seagate Barracuda.
I m not using RAID Architecture, these are Physical : 1x Seagate FireCuda 510 SSD NVMe 1 TB + 3x 8 TB Seagate Barracuda 7200 RPM HDD + 1x 4 TB M3 USB External Seagate Maxtor HDD.
rockbottom
Active Member
Use ShadowPlay if you don't want to take the time to test & get it to run correctly.
www.howtogeek.com

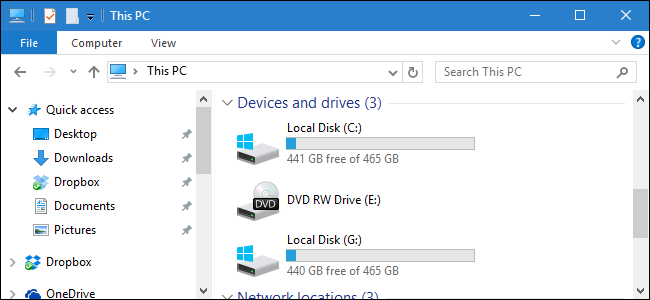

What to Do When Windows Shows Two Different Drive Letters for the Same Disk
It's a somewhat rare problem, but on occasion, Windows might display the same hard disk or partition twice using different drive letters.
ACI XCIX-0001
Member
I want to take the time and test because you choose to helpUse ShadowPlay if you don't want to take the time to test & get it to run correctly.
What to Do When Windows Shows Two Different Drive Letters for the Same Disk
It's a somewhat rare problem, but on occasion, Windows might display the same hard disk or partition twice using different drive letters.
ACI XCIX-0001
Member
aaaaa OK Because of the letter : Because on these 5 Drives I Have Partitions too !Use ShadowPlay if you don't want to take the time to test & get it to run correctly.
What to Do When Windows Shows Two Different Drive Letters for the Same Disk
It's a somewhat rare problem, but on occasion, Windows might display the same hard disk or partition twice using different drive letters.
Don t worry no issues about that !
All aware of it and it s normal, I have at least 2 Partitions on Each drive.
ACI XCIX-0001
Member
So do I run a new test in P4 ?
rockbottom
Active Member
Yes, if you're using the Z drive again, make sure nothing is being written to the other partition during the test.
ACI XCIX-0001
Member
Nothing is Written or Read, Checked.
