Frame dropping with stable ISP

G

grepolis

New Member
Hi!

First of all, I'd like to say that I took a look at the section about "Dropped Frames And General Connection Issues", tried everything there and nothing worked.
I have been having this problem with dropped frames and it happens randomly, sometimes a couple of minutes after start streaming, sometimes takes like one or two hours, but it always occur -- the game I'm playing doesn't matter.

My PC specs:
i7 8700 (not K)
16gb RAM 2666mhz cl16
RTX 4070 TI brand new
Gigabyte B360M Aorus
1tb Nvme 3600mb/s read 3400mb/s write

I'm playing at 4k (with freesync on) and doesn't matter if I try to stream at 4k, 1440p, 1080p, 60fps or whatever combination with different bitrates (15k, 13k, 12k, 10k, 9k, 8k, 6k), that problem always happen. Also tried in different platforms, using different codecs.

Since I'm playing online games and I don't see any problem with latency on game (neither from my perception nor from the game itself numbers) I don't think it could be internet. I'm also using Discord and no voice problem in or out, no disconnects, nothing.

OBS uses like less than 1% (even setting to high and then manually on task manager setting to above or high) when I'm streaming. Game + Windows use only 10gb of RAM. vRAM at 10gb. No lag and no stuttering neither on gameplay nor on stream video (but it does stop streaming after the frame drop start).

Windows is super updated 22H2 (OS Build 22621.2134). I'm using the latest OBS version.

What could it be? HALP



Attachments

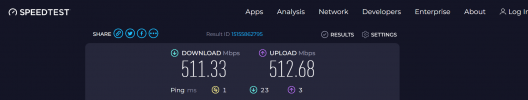

  • ping1.png
    48.9 KB · Views: 22
  • 2023-08-23 06-52-39.txt
    20.7 KB · Views: 25
L

Lawrence_SoCal

Active Member
grepolis said:
Hi!

First of all, I'd like to say that I took a look at the section about "Dropped Frames And General Connection Issues", tried everything there and nothing worked.
I have been having this problem with dropped frames and it happens randomly, sometimes a couple of minutes after start streaming, sometimes takes like one or two hours, but it always occur -- the game I'm playing doesn't matter.
Click to expand...
Have you tried Recording only (not Streaming) and confirmed your PC itself isn't struggling with some hardware resource contention or bottleneck. For example, what is overall CPU usage?

And though frame rendering dropped frames is minimal,
grepolis said:
Since I'm playing online games and I don't see any problem with latency on game (neither from my perception nor from the game itself numbers) I don't think it could be internet. I'm also using Discord and no voice problem in or out, no disconnects, nothing.
Click to expand...
Downstream traffic is different from upstream. Most of what we all do (and notice) is download, so ISPs focus on that. Download can be fine and upload NOT be.. Or it could be your ISP to your stream platform of choice. Have you tried streaming to a different platform?

If you tried 'everything', that means you connected your PC to another ISP. What happened then?

06:59:20.425: Output 'adv_stream': Number of dropped frames due to insufficient bandwidth/connection stalls: 6557 (32.4%)
What are you doing for real-time monitoring of your WAN/ISP link traffic? Is your computer or something else (PC, IoT device, etc) on LAN creating network traffic you don't expect?

What have you done to test sustained upload speed, to YT in your case or elsewhere (to confirm ISP isn't the issue... which it usually isn't)?

G

grepolis

New Member
Lawrence_SoCal said:
Have you tried Recording only (not Streaming) and confirmed your PC itself isn't struggling with some hardware resource contention or bottleneck. For example, what is overall CPU usage?
Click to expand...
It's usually 40% CPU and 30%~50% gpu, game is not really well optimized but also happens when I'm playing Forza 5, which is really well optimized and there my cpu is 99% and cpu like 50%. I have been considering buy a new cpu (5800x3d), but that would be just dec-jan

Lawrence_SoCal said:
And though frame rendering dropped frames is minimal,
Downstream traffic is different from upstream. Most of what we all do (and notice) is download, so ISPs focus on that. Download can be fine and upload NOT be.. Or it could be your ISP to your stream platform of choice. Have you tried streaming to a different platform?
Click to expand...
If upstream would be bad when the frames are dropping there's a big change that I'd be having problems to cast skills in an online game. because it uses upload to do that. Yes, I tried twitch and youtube both 1440p, 1080p and 60fps.

Lawrence_SoCal said:
If you tried 'everything', that means you connected your PC to another ISP. What happened then?
Click to expand...
That I couldn't do because... I don't know where I'd find another ISP just to test it

Lawrence_SoCal said:
06:59:20.425: Output 'adv_stream': Number of dropped frames due to insufficient bandwidth/connection stalls: 6557 (32.4%)
What are you doing for real-time monitoring of your WAN/ISP link traffic? Is your computer or something else (PC, IoT device, etc) on LAN creating network traffic you don't expect?
Click to expand...
Basically just checking if OBS is dropping frames or not and using the latency counter that the game provides. But I'd be willing to use some specific program to do it if you can point some out. It is my pc and it's the only pc on the house, it's cable connected and wifi I limit wifi to use only 15% of the bandwidth on our smartphones

Lawrence_SoCal said:
What have you done to test sustained upload speed, to YT in your case or elsewhere (to confirm ISP isn't the issue... which it usually isn't)?
Click to expand...
Just the usual speed test. I tried to find some long upload tests websites but I couldn't. You know a good one?

G

grepolis

New Member
@qhobbes
I just did another one with sample rate audio suggested from obs

Analyzer | OBS

OBS (Open Broadcaster Software) is free and open source software for video recording and live streaming. Stream to Twitch, YouTube and many other providers or record your own videos with high quality H264 / AAC encoding.
obsproject.com obsproject.com

qhobbes

qhobbes

Active Member
AV1 may not support Dynamic Bitrate. When AV1 is selected as the Video Encoder for Streaming, go to Settings, Advanced, Network. If Dynamic Bitrate is available and enabled, it should look like this:

If that is not available, then AV1 doesn't support it. You'll either need to lower your bitrate to the point where you're not dropping frames or use HVEC or H.264.

G

grepolis

New Member

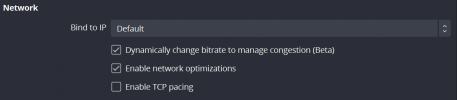

Yeah, I did select "av1" AND "Dynamically change" as you can see in this screenshot. But frame drop still happen


Attachments

  • 1692913923571.png
    14.1 KB · Views: 24
qhobbes

qhobbes

Active Member
When Dynamic Bitrate is enabled and working, it should show it in the logs such as:

14:59:52.954: [rtmp stream: 'adv_stream'] Dynamic bitrate enabled. Dropped frames begone!
Your log does not show that. Try using HVEC or H.264 with Dynamic Bitrate.

G

grepolis

New Member
Ooooh yes, you are right. I just tested and yes I can confirm that AV1 and HVEC still don't work with "Dynamically". I was only able to actually use it with H.264
