No audio by recording

[Ernst]

I recently purchased a Video Grabber, the UVG-002, to digitize and store old VHS tapes.
My configuration is as follows:

Video recorder: Panasonic NV-F 70-HQ
Laptop: Lenovo Ideapad 5 with 16 GB RAM-500 GB hard disk-Windows 1 Home version 22H2
Application software: OBS 30.0.0

The recorder and laptop are connected, in accordance with the instruction film, via the output of the video recorder to the Video Grabber in a USB port on the laptop.

Something goes wrong when configuring OBS. I can assign a video recording as a source, but not an audio recording. When selecting audio "Audio input recording", the Grabber is not seen, resulting in the image being recorded but without sound.

Which settings (perhaps in Windows 11) do I need to change to get this working?

Log file

https://obsproject.com/logs/CNsmQbO8v3kGpB87



[Chris_70]

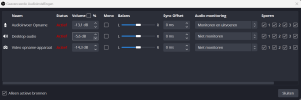

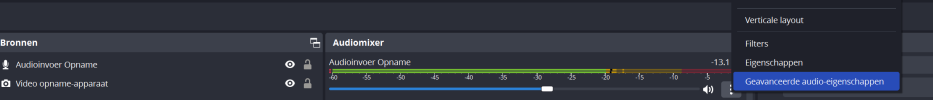

I also had no sound after installing OBS and the UVG-002. I got it working when I changed the advanced settings in the audiomixer for the item Audio input recording. Click in the three dots, go to advanced and change the value in the column audio monitoring to "Monitor and output". That did the trick for me, but there may be other settings to change as well. See the screenshots.
