Question / Help Huge frame drops with new graphic card

[Blacktajine]

Hello all,

I recently changed my graphic card (from AMD R9 390 to GTX 1080) and when i try to record a game I have huge frame drops (~6 fps) and frame skipping while the game runs perfectly fine. It does this with all the games either an AAA or a regular one.

I did not use to have these problems with the R9 390.

Other recording softwares work just fine (Shadowplay and Action Mirilis), but I'm quite annoyed since OBS i my favourite one :(

Last information : i have a i5 4690k @4.4Ghz and I use hardware encoding.

EDIT : Here my CORRECT last log :
https://gist.github.com/b69963dc35786dcfcff4c0f909c979f6

Current log : https://gist.github.com/67054ad1314b61c722f0e6da59c43f1b

Thank you very much



[Harold]

Your log doesn't show a recording or streaming attempt.



[Blacktajine]

Oh sorry, just fixed that



[Harold]

Need the full session log including profiler. "Current log" doesn't cut it.



[Blacktajine]

Here you go ! :)



[Harold]

Still no profiler.



[Blacktajine]

I'm a bit lost I uploaded all the available log files current and last...



[Harold]

re-do a last log from a session where you attempted.

%appdata%\obs-studio\logs has them.



[Blacktajine]

Like this ?



[Harold]

Use display driver uninstaller to remove the radeon drivers.



[Blacktajine]

I just done that and have the same issue...



[Blacktajine]

Up



[Fenrir]

From the last log you provided, you're overloading your PC. Make sure you're capping FPS in your game so it's not using your entire CPU/GPU.

03:44:30.466: Output 'simple_file_output': Number of skipped frames due to encoding lag: 2462 (28.5%)
03:44:30.467: Output 'simple_file_output': Number of lagged frames due to rendering lag/stalls: 584 (6.8%)

Also, in all those logs you still have the AMD drivers installed. Try DDU: http://obsproject.com/forum/resources/performing-a-clean-gpu-driver-installation.65/



[Blacktajine]

Hello,

It seems weird that I'm overloading my PC since I have the same issue with all the games (even the less demanding ones)...

And this log is after having removed the AMD drivers with DDU... :/

Also I do not have this issue with Mirilis for instance so I think that it's more software than hardware related no ?



[Fenrir]

Since you recently installed a new GPU, try this:

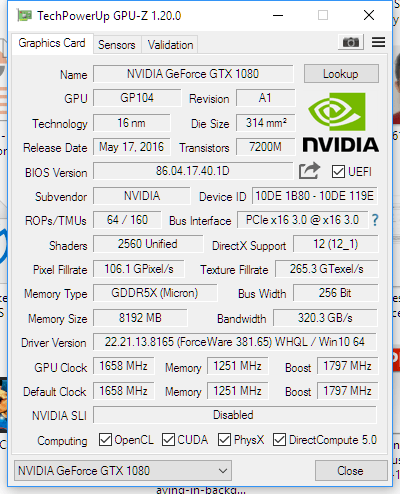

Please download GPU-Z and post a screenshot (the camera button in the program and upload to free image hosting) Download: https://www.techpowerup.com/downloads/SysInfo/GPU-Z/



[Blacktajine]

Here you go !
http://gpuz.techpowerup.com/17/04/24/9c3.png



[Blacktajine]

Any insight ?



[Fenrir]

Hm, all looks fine there. Running in the correct mode.

Use GPUz to monitor your GPU load both before and after opening OBS. Make sure your games are not maxing it out.



[Blacktajine]

Still not working and the card is not maxed out by the game...
