Question / Help encoding overloaded after PC upgrade

[raindrops]

Before/Old:
Graphics card: onboard GPU that comes with the amd A10 (don't know the exact term)
Cpu: AMD A10-7850k Radeon R7, 12 Compute Cores 4C+8G ~ 3.7GHz
Mobo: GIGABYTE GA-F2A88XM-HD3
Ram: Fury HyperX 16gb (8gb x 2)
HDD: 500gb Seagate Barracuda
OS: 64bit windows 7
OBS: 18.0.1



After/New:
Graphics card: ASUS Nvidia Dual GeForce® GTX 1060 3GB
Cpu: AMD A10-7850k Radeon R7, 12 Compute Cores 4C+8G ~ 3.7GHz
Mobo: GIGABYTE GA-F2A88XM-HD3
Ram: Fury HyperX 16gb (8gb x 2)
HDD: 500gb Seagate Barracuda
OS: 64bit windows 10
OBS: 18.0.1


I'm currently streaming DOTA 2 to YouTube. Using my old PC setup i can stream 720p 30fps on x264(very fast) without problems. However, on my new setup i tried 720p 30fps on x264(very fast or higher) but obs will prompt with the encoding overloaded. What i do not understand is that it happened after i changed/upgraded the GPU and the OS. Now i am force to use nvech H.264 i do not like the quality of the video...im quite new with streaming and obs so even a little help i really welcome and appreciate it.



[Fenrir]

If you are using OBS Classic, this version has not been in development for some time. It is strongly recommended that you update to OBS Studio.

Links to download can be found here: https://obsproject.com/download

Further information on why you should update (and how) can be found here: https://obsproject.com/forum/threads/how-to-easily-switch-to-obs-studio.55820/



[raindrops]

tnx for the reply, as of the moment i am using obs 18.0.1 i think this is the studio version if im not mistaken.



[raindrops]

any suggestion with this issue?



[Fenrir]

Please provide a log so we can see what's going on



[raindrops]

hi Fenrir this is the log. starting at 03:04:22.496 is the x264 where i am having an issue.
btw my upload speed is 80-90mbps


Log link: https://gist.github.com/anonymous/db822e8381a1082e2e31230d9365ae12



[Fenrir]

03:06:11.755: Output 'adv_stream': Number of skipped frames due to encoding lag: 869484297 (24.4%)

This generally means that your CPU cannot keep up. Since it's a fairly weak AMD APU, you might need to turn settings down for streaming with x264 over NVENC.

It's possible that your GPU is not installed in the correct slot as well. Did you put it in the slot closest to the CPU? Download GPU-Z and post a screenshot (the camera button in the program and upload to free image hosting) https://www.techpowerup.com/downloads/SysInfo/GPU-Z/



[raindrops]

GPU-Z Link:
[QUOTE="This generally means that your CPU cannot keep up. Since it's a fairly weak AMD APU, you might need to turn settings down for streaming with x264 over NVENC.[/QUOTE]

Before i upgraded to ASUS Nvidia Dual GeForce® GTX 1060 3GB its working fine with 720p 30fps. GPU was added to the closest slot.

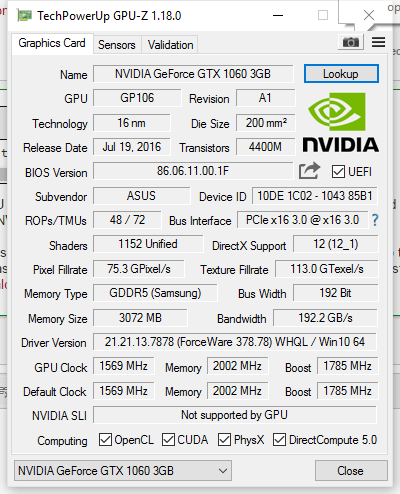

GPU-Z Link: http://gpuz.techpowerup.com/17/03/22/9mx.png
